Sizing an evaporator correctly is one of the most consequential decisions in any concentration or effluent project. An undersized unit becomes a production bottleneck from the first day, while an oversized one ties up capital, runs inefficiently at part load and can foul faster because of poor wetting. Yet the core of evaporator sizing rests on a few simple principles: conservation of mass, conservation of energy and the basic heat transfer equation.
This practical guide walks through evaporator capacity calculation the way a process engineer approaches it: defining capacity, setting up the mass balance, working out the heat load and steam demand, estimating heat transfer area and then adjusting for real-world factors such as boiling point elevation, fouling and operating hours. All worked figures are illustrative, chosen to show the method clearly. A real design should always be based on measured feed data.

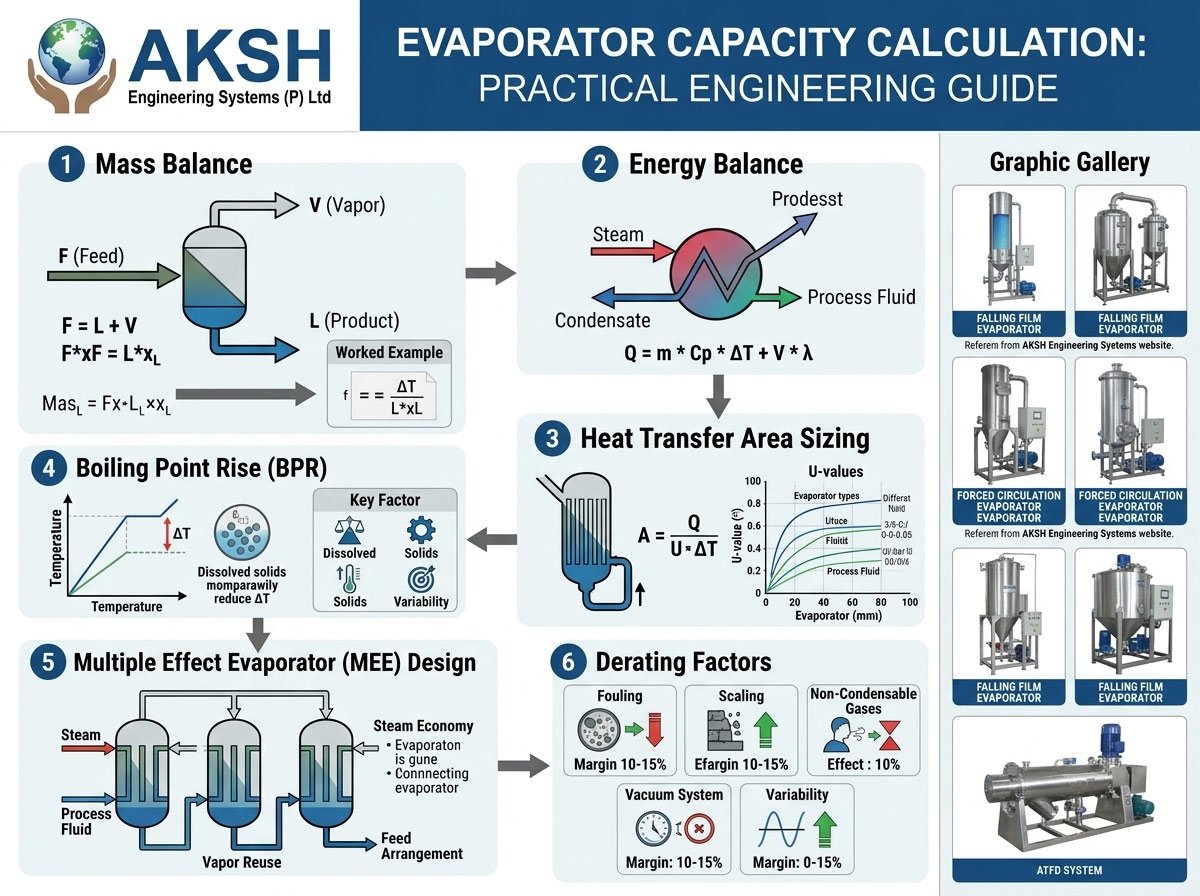

What Evaporator Capacity Actually Means
In industry, evaporator capacity almost always means the evaporation rate: the mass of water (or other solvent) removed per hour, usually expressed in kg/hr. Some suppliers and buyers quote feed capacity in liters per hour (LPH) or, for effluent plants, kiloliters per day (KLD). These are related but not the same thing, so it is important to be clear which figure is being discussed.
- Feed rate: The quantity of dilute liquid entering the evaporator.
- Evaporation rate: The quantity of water removed as vapor. This drives steam demand and heat transfer area.
- Product rate: The quantity of concentrate leaving the evaporator.
Two evaporators with the same feed rate can have very different evaporation rates depending on how much the liquid is concentrated. Always ask for the evaporation rate when comparing proposals.
The Data You Need Before You Start
A reliable calculation depends on reliable inputs. Before sizing begins, collect:
- Feed flow rate and its variation (minimum, normal and maximum)
- Feed solids or TDS concentration, as a mass fraction
- Required product concentration
- Feed temperature at the evaporator inlet
- Specific heat of the feed, or enough composition data to estimate it
- Boiling point elevation across the concentration range
- Viscosity at the final concentration and operating temperature
- Maximum allowable product temperature for heat-sensitive liquids
- Available steam pressure, cooling water temperature and electricity supply
- Scaling, foaming and corrosion behavior
- Planned operating hours per day
Step 1: The Mass Balance
The solids entering the evaporator must leave in the concentrate, because only water is evaporated. This gives two simple equations:
- Total balance: F = P + E
- Solids balance: F x xF = P x xP
Here F is the feed rate, P is the product rate, E is the evaporation rate, xF is the feed solids fraction and xP is the product solids fraction. Combining them gives the most useful single formula in evaporator sizing:
E = F x (1 - xF / xP)
Worked Example 1: Concentrating a Process Liquid (Illustrative)
A plant needs to concentrate 5,000 kg/hr of a solution from 10 percent to 40 percent solids by weight.
- Solids in feed = 5,000 x 0.10 = 500 kg/hr
- Product rate P = 500 / 0.40 = 1,250 kg/hr
- Evaporation rate E = 5,000 - 1,250 = 3,750 kg/hr
- Check with the formula: E = 5,000 x (1 - 0.10 / 0.40) = 5,000 x 0.75 = 3,750 kg/hr
Notice that 75 percent of the feed mass must be evaporated. Concentration ratios have a non-linear effect: taking the same feed to 50 percent solids would give P = 500 / 0.50 = 1,000 kg/hr and E = 4,000 kg/hr, an extra 250 kg/hr of evaporation for ten more percentage points.
Converting Between Volume and Mass
If the feed is specified in liters per hour, multiply by density. For example, a feed with a density of 1.04 kg/L flowing at 4,808 L/hr corresponds to about 5,000 kg/hr. Using volume and mass interchangeably for dense liquids can introduce significant errors.
Worked Example 2: An Effluent Stream (Illustrative)
An effluent plant must treat 100 KLD of RO reject containing 3 percent TDS and concentrate it to 30 percent before a crystallizer. Assuming a density close to 1 kg/L and 24-hour operation:
- Feed rate = 100,000 kg/day / 24 hr = about 4,166.7 kg/hr
- Dissolved solids = 4,166.7 x 0.03 = 125 kg/hr
- Concentrate = 125 / 0.30 = about 416.7 kg/hr
- Evaporation = 4,166.7 - 416.7 = 3,750 kg/hr
If the same plant ran only 20 hours a day, the hourly feed rate would rise to 5,000 kg/hr and the evaporation rate to 4,500 kg/hr, a 20 percent larger evaporator. Operating hours belong in the design basis from the start.
Step 2: The Energy Balance and Steam Demand
Once the evaporation rate is known, the heat load can be calculated. For a single effect, the heat supplied by steam must cover two duties:
- Sensible heat: Raising the feed from its inlet temperature to the boiling temperature, F x Cp x (Tb - Tf)
- Latent heat: Evaporating the water, E x latent heat at the boiling temperature
The steam requirement is then the total heat load divided by the latent heat of the heating steam at its condensing pressure.
Worked Example 3: Single Effect Steam Demand (Illustrative)
Continue with Example 1. Assume the feed enters at 30°C, the evaporator boils at 60°C under vacuum, the feed specific heat is 3.8 kJ/kg·K, and heating steam is supplied at about 1 bar absolute (saturation temperature roughly 100°C). For simplicity, boiling point elevation and heat losses are ignored at this stage. Approximate steam table values are used: latent heat of about 2,358 kJ/kg at 60°C and about 2,257 kJ/kg at 100°C.
- Sensible heat = 5,000 x 3.8 x (60 - 30) = 570,000 kJ/hr
- Latent heat = 3,750 x 2,358 = 8,842,500 kJ/hr
- Total heat load Q = 570,000 + 8,842,500 = 9,412,500 kJ/hr
- In kilowatts: 9,412,500 / 3,600 = about 2,614.6 kW
- Steam demand = 9,412,500 / 2,257 = about 4,170 kg/hr
- Steam economy = 3,750 / 4,170 = about 0.90 kg water per kg steam
This result matches the typical single effect economy of around 0.9. In practice, designers add an allowance for heat losses and for venting, often a few percent of the total load.
Multiple Effects and Vapor Recompression
For a multiple effect evaporator, a detailed calculation balances heat and mass for each effect simultaneously, accounting for the temperature and pressure in each body. For an early estimate, divide the evaporation rate by an expected steam economy. With a triple effect plant at an assumed economy of 2.5, the same duty would need about 3,750 / 2.5 = 1,500 kg/hr of steam. Our comparison of multiple effect and single effect evaporators explains typical economies for each configuration. For mechanical vapor recompression, steam demand drops to a small make-up quantity and compressor power becomes the main energy figure, as discussed in our article on how MVR evaporators cut steam costs.
Step 3: Heat Transfer Area
The heat transfer area follows from the basic design equation:
Q = U x A x ΔT, so A = Q / (U x ΔT)
Q is the heat load in watts, U is the overall heat transfer coefficient in W/m²·K and ΔT is the temperature difference between condensing steam and boiling liquid.
Worked Example 4: Area Estimate (Illustrative)
Using Example 3, Q is about 2,614,600 W. With steam at about 100°C and boiling at 60°C, ΔT is 40°C. Assume an overall coefficient U of 1,500 W/m²·K, a plausible illustrative value for a clean falling film unit on a moderately concentrated liquid.
- A = 2,614,600 / (1,500 x 40) = 2,614,600 / 60,000 = about 43.6 m²
- Adding a 15 percent design margin: 43.6 x 1.15 = about 50.1 m²
The Effect of Boiling Point Elevation
A 40 percent solution boils at a higher temperature than pure water at the same pressure. If the boiling point elevation were 3°C, the liquid would boil at 63°C and the effective ΔT would drop to 37°C. The area would then be 2,614,600 / (1,500 x 37) = 2,614,600 / 55,500 = about 47.1 m² before margin, roughly 8 percent more than the estimate that ignored elevation. For concentrated brines and salt solutions, elevations can be far larger, and ignoring them is one of the most common sizing errors.
Choosing a Realistic Heat Transfer Coefficient
The U value has the biggest uncertainty in the whole calculation. It depends on evaporator type, liquid viscosity, velocity, temperature and cleanliness. The table below gives broad, illustrative ranges only; real design values should come from test data or proven references.
| Evaporator Type | Typical Duty | Illustrative U Range (W/m²·K) |
|---|---|---|
| Falling film | Low-viscosity, clean or heat-sensitive liquids | Often around 1,000 to 2,500 |
| Rising film | Moderately viscous or foaming liquids | Often around 800 to 2,000 |
| Forced circulation | Scaling, crystallizing or viscous liquids | Often around 1,000 to 3,000, depending on velocity |
| Natural circulation or calandria | General-purpose concentration | Often around 600 to 1,800 |
U usually falls as the liquid becomes more concentrated and viscous, which is why later effects or finishers often need more area per unit of heat transferred. Our comparison of falling film and rising film evaporators discusses how each design behaves.
Step 4: Real-World Allowances
A design that matches the mass and energy balance exactly will not perform as expected in the field. Experienced engineers allow for the following factors.
Fouling
Deposits on the heat transfer surface add thermal resistance and reduce U over time. Designers include a fouling allowance and plan cleaning intervals so the evaporator still meets capacity at the end of a production run. Our guide to common evaporator fouling problems explains how deposits form and how to control them.
Feed Variability
Feed concentration and flow rarely stay constant. Size for the realistic maximum, not just the average, and confirm the evaporator can still run stably at minimum flow, especially for falling film units that need a minimum wetting rate.
Cleaning Downtime
If the evaporator must stop for cleaning for several hours a week, the remaining hours must handle the full weekly volume. This raises the required hourly capacity.
Future Expansion
Where production is expected to grow, it may be cheaper to provide spare area or space for an extra effect now than to retrofit later.
Common Mistakes in Evaporator Sizing
- Confusing feed rate with evaporation rate when comparing proposals
- Using volume instead of mass for dense liquids
- Ignoring boiling point elevation in concentrated solutions
- Choosing an optimistic U value without supporting data
- Forgetting the sensible heat needed to bring cold feed to boiling
- Designing on average flow while ignoring peaks and cleaning downtime
- Overlooking viscosity limits at the final concentration
From Evaporator to Dryer
When the final product is a powder, the evaporator and dryer should be sized together. Removing water in an evaporator typically costs far less energy than removing it in a dryer, so concentrating as far as practical before drying usually pays off, within the viscosity limits of the atomizer. Our article on the physics of spray drying explains the heat and mass transfer behind that downstream step, and AKSH's industrial spray dryers are often supplied together with upstream evaporation.
Why Choose AKSH Engineering
AKSH Engineering Systems Pvt. Ltd. has designed and manufactured evaporation, drying and turnkey process plants in Ahmedabad, Gujarat, since 2013, with more than 100 installations. Our team of technocrats brings over 100 years of combined experience, and we design and fabricate in-house. Every evaporator we supply is sized from a full mass and energy balance using your actual feed data. Our industrial evaporators range from 500 LPH to more than 100,000 LPH in multiple effect, MVR, falling film and forced circulation designs. For effluent duties, they integrate with our ZLD plants, and our instrumentation, automation and controls help hold the plant at its design capacity. See the full range of sustainability solutions for more.
Conclusion
Evaporator capacity calculation starts with a straightforward mass balance, moves through an energy balance to find steam demand and ends with the heat transfer equation to estimate area. The arithmetic is simple. The engineering judgment lies in the inputs: realistic U values, boiling point elevation, fouling allowances, feed variability and operating hours. Getting those right is what separates an evaporator that performs from one that disappoints.
If you would like a second opinion on your sizing, or need an evaporator designed from scratch, share your feed data with the AKSH Engineering team. We will prepare a detailed mass and energy balance and recommend a configuration that meets your capacity with confidence.
