Few problems drain the performance of an evaporation plant as quietly as fouling. A new evaporator meets its design capacity at a predictable steam consumption. A few weeks or months later, operators notice they need higher steam pressure to hold the same throughput, the concentrate is not as thick as it should be, or the plant has to stop more often for cleaning. In most cases, the cause is a layer of unwanted material building up on the heat transfer surfaces.
The good news is that evaporator fouling is rarely random. It follows well-understood mechanisms, and each mechanism has known countermeasures in design, operation and cleaning. This guide explains the most common fouling problems in industrial evaporators, how to recognize them early and the practical steps that keep heat transfer surfaces clean for longer.
What Fouling Does to an Evaporator
Fouling is the accumulation of deposits on the surfaces that transfer heat from steam to the process liquid. Most deposits conduct heat far less well than the stainless steel or alloy tube underneath, so even a thin layer adds significant resistance. The overall heat transfer coefficient falls, and with it the amount of water the evaporator can remove at a given temperature difference.
The consequences spread across the plant:
- Lost capacity: The evaporator can no longer reach design throughput or final concentration.
- Higher energy use: Operators raise steam pressure or temperature to compensate, which can accelerate fouling further.
- Product quality issues: In food and dairy, burnt-on deposits can flake off and contaminate product, or cause color and flavor defects.
- More downtime: Frequent cleaning stops reduce available production hours.
- Equipment damage: Some deposits promote under-deposit corrosion, and severe blockages can force tube replacement.

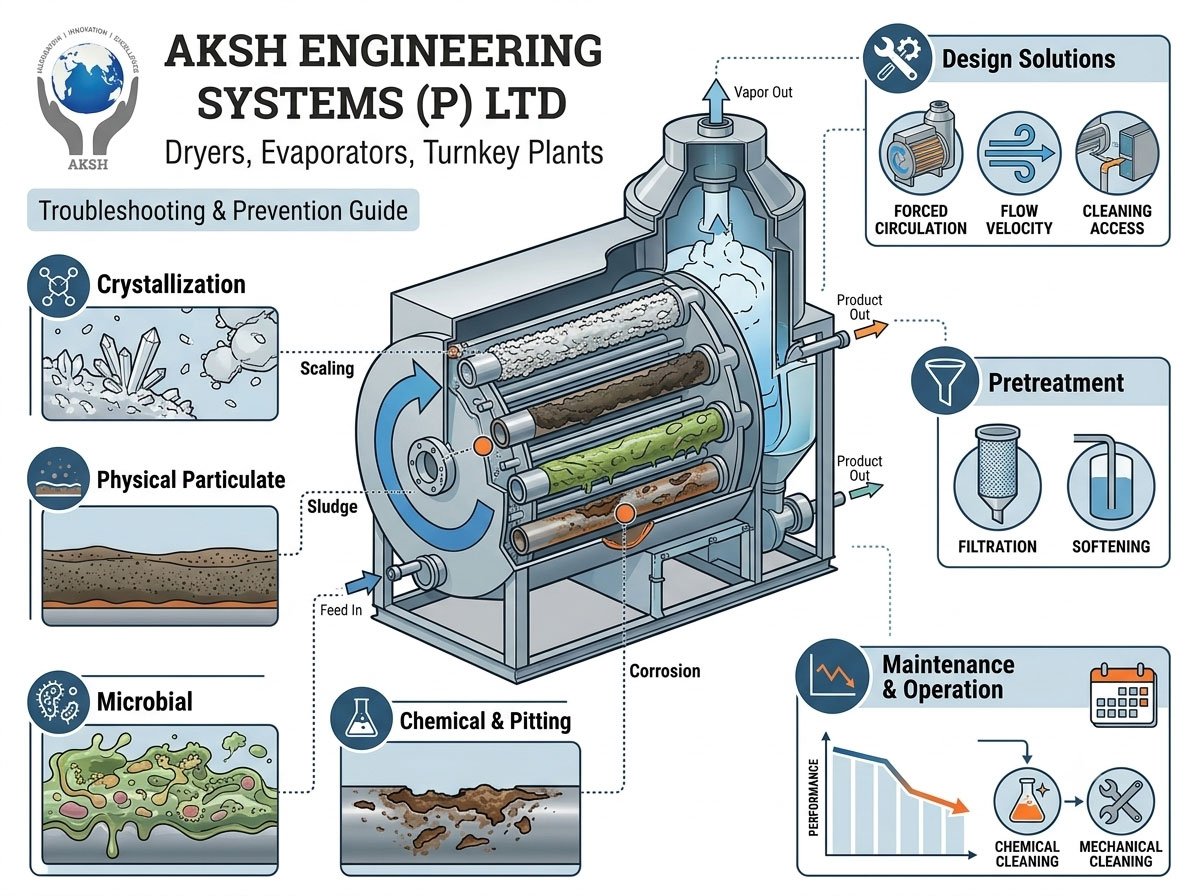

The Main Types of Evaporator Fouling
1. Crystallization Fouling and Scaling
As water evaporates, dissolved salts concentrate. Once a salt exceeds its solubility limit, it can crystallize directly on the hot tube surface. Calcium sulfate and calcium carbonate are classic examples, and both have inverse solubility, meaning they become less soluble as temperature rises. That is why scale tends to form exactly where the surface is hottest. Silica, calcium phosphate and magnesium compounds cause similar problems in many effluent and process streams. Scale is often hard, adherent and difficult to remove.
2. Particulate Fouling
Suspended solids, such as fine clay, fibers, catalyst fines or undissolved product, can settle on surfaces where velocity is low. Particulate deposits are usually softer than scale but can trap other foulants and form a mixed, stubborn layer.
3. Organic and Protein Fouling
In dairy, food and fermentation duties, proteins denature at elevated temperatures and stick to hot surfaces, often together with minerals such as calcium phosphate. Sugars can caramelize, and fats can bake on. These deposits build quickly where the product is overheated or where tubes run partially dry.
4. Chemical Reaction Fouling
Some liquids react at the heated surface, through polymerization, oxidation or decomposition, forming tarry or coke-like layers. This is common with certain organic chemical streams, distillery spent wash and complex industrial effluents containing high COD.
5. Biological Fouling
Microorganisms can grow in feed tanks, preheaters and the cooler sections of a plant, forming slimy biofilms. Biofouling is more common in low-temperature zones and in plants that stand idle with liquid inside.
6. Corrosion Fouling
Corrosion products build up on surfaces when the material of construction is not suited to the liquid chemistry. Concentrated chlorides, acidic streams and some effluents can attack standard stainless steels, producing both deposits and metal loss.
Fouling Types at a Glance
| Fouling Type | Common Sources | Typical Warning Signs | Key Preventive Measures |
|---|---|---|---|
| Scaling and crystallization | Effluent, brines, hard water, salt solutions | Gradual loss of heat transfer, hard white or gray deposits | Pretreatment, antiscalants, forced circulation, concentration limits |
| Particulate | Feeds with suspended solids | Uneven deposits, distributor blockage | Filtration, adequate velocity, good distribution |
| Protein and organic | Milk, whey, juices, extracts | Rapid capacity loss, burnt or brown deposits | Temperature control, short residence time, full wetting, CIP |
| Chemical reaction | Organic chemicals, spent wash, high-COD effluents | Tarry or carbonized layers | Lower wall temperature, pretreatment, process review |
| Biological | Low-temperature zones, idle equipment | Slime, odor, rising pressure drop | Sanitation, drain-down during stops, biocide where suitable |
| Corrosion | Chloride-rich or acidic liquids | Discoloration, pitting, metal loss | Correct material selection, pH control |
How to Detect Fouling Early
The best time to deal with fouling is before it becomes visible on production reports. Several indicators help:
- Heat transfer coefficient trend: Calculating U daily from steam flow, temperatures and evaporation rate shows performance drift clearly.
- Rising steam pressure: If steam chest pressure must climb to hold capacity, the surface is likely fouling.
- Falling evaporation rate: Lower condensate flow at the same steam input points to reduced heat transfer.
- Increasing pressure drop: In forced circulation loops and preheaters, higher pressure drop suggests deposits narrowing flow paths.
- Product density drift: Concentrate that falls short of target density at constant conditions is another warning sign.
Automated monitoring makes these trends easy to see. AKSH's instrumentation, automation and controls systems log temperatures, pressures and flows in a SCADA historian, so engineers can spot gradual declines and plan cleaning rather than react to a crisis.
Preventing Fouling Through Good Design
Many fouling problems are decided at the design stage. The right choices make a plant tolerant of difficult liquids; the wrong ones guarantee frequent stoppages.
Choose the Right Evaporator Type
Falling film evaporators are excellent for clean, heat-sensitive liquids, but they are vulnerable to scaling and to dry spots if distribution fails. For liquids that crystallize or scale heavily, forced circulation evaporators are usually preferred. A large pump drives the liquid through the tubes at high velocity, and the liquid is kept under enough static head that it does not boil inside the tubes; boiling happens in the separator instead. That keeps crystallization off the heat transfer surface. Our comparison of falling film and rising film evaporators explains where each film design fits.
Control Velocity and Wetting
Low velocity encourages deposits to settle and grow. Falling film tubes need a minimum wetting rate so that every part of the surface stays covered, which often means recirculating liquid. Distribution devices must be carefully designed and kept clean, because a blocked distributor leaves tubes dry and leads to rapid burn-on.
Limit Temperature Difference and Wall Temperature
High wall temperatures accelerate scaling of inverse-solubility salts and baking of proteins. Spreading the temperature difference over several effects, or using vapor recompression with a small driving force, lowers wall temperature. Plants that use multiple effects, as discussed in our article on multiple effect vs single effect evaporators, often benefit from this.
There is a trade-off, however. When the driving temperature difference is small, any deposit consumes a larger share of it. Plants that rely on mechanical vapor recompression are particularly sensitive, because the compressor can only provide a limited temperature lift, and a fouled surface quickly pushes up power demand. Our article on how MVR evaporators cut steam costs explains why clean surfaces matter so much in these systems.
Allow for Fouling in the Sizing
Realistic fouling allowances and sensible design margins mean the evaporator can still meet capacity at the end of a run. Our evaporator capacity calculation guide shows how heat transfer coefficient and area are linked.
Select Materials Carefully
Smooth, corrosion-resistant surfaces resist adhesion and avoid corrosion fouling. AKSH's industrial evaporators are built in SS304, SS316 and SS316L, with duplex steel, titanium and Hastelloy available for aggressive liquids, and use custom flow velocities and heat surface designs intended to prevent tube choking during continuous runs.
Design for Cleaning
Spray devices in separators, drainable piping without dead legs, access for inspection and connections for cleaning circuits make every future cleaning faster and more effective.
Preventing Fouling Through Feed Pretreatment
Removing foulants before they reach the evaporator is often the most cost-effective measure:
- Filtration: Removes suspended solids that would otherwise settle on tubes or block distributors.
- Softening and hardness removal: Reduces calcium and magnesium that form scale.
- pH adjustment: Shifts solubility of carbonates and other salts and can reduce corrosion.
- Antiscalant dosing: Specialized chemicals can delay crystal formation, within limits.
- Degassing: Removing carbon dioxide and other gases can reduce carbonate scaling.
- Silica control: Where silica is high, specific pretreatment may be needed to avoid glassy deposits.
In effluent plants, pretreatment upstream of RO and evaporation is part of the overall scheme. AKSH's ZLD plants include pretreatment stages such as multi-grade filters, activated carbon filters, ultrafiltration, softeners and chemical dosing to protect downstream membranes and thermal units from scaling.
Preventing Fouling Through Operation
- Run steadily: Frequent starts, stops and swings in feed rate disturb wetting and temperature profiles.
- Respect concentration limits: Pushing concentration beyond the design point can trigger crystallization in the wrong place.
- Avoid excessive steam pressure: Raising pressure to chase capacity often accelerates the very fouling that caused the loss.
- Vent non-condensable gases: Gas blankets reduce heat transfer and can be confused with fouling.
- Drain or flush during stoppages: Liquid left standing in tubes can dry, settle or support biological growth.
- Train operators: Teams who understand why limits exist are less likely to push the plant into fouling conditions.
Cleaning: Restoring Performance
Even the best-designed evaporator needs periodic cleaning. A planned approach keeps cleaning short, safe and effective.
Chemical Cleaning
Most evaporators are cleaned with alternating alkaline and acid solutions. Caustic solutions typically remove organic, protein and fat deposits, while acid solutions dissolve many mineral scales. Specialized chemicals may be needed for silica or calcium sulfate. Temperature, concentration, contact time and flow velocity all influence results.
Automated Cleaning-in-Place
Clean-in-place systems circulate cleaning solutions and rinse water through the evaporator and its piping without dismantling it. Automated CIP makes cleaning repeatable, reduces chemical and water use and protects operators from handling hot chemicals. AKSH's automatic cleaning-in-place systems control time, temperature, chemical concentration and flow, and their PLC-driven recipes record each cleaning cycle. For the principles behind effective CIP, read our article on the fundamentals of clean-in-place technology.
Mechanical Cleaning
Hard scales that resist chemicals may require high-pressure water jetting or mechanical tube cleaning during planned shutdowns. If mechanical cleaning becomes routine, it is a sign that design or pretreatment should be reviewed.
Optimizing the Cleaning Interval
Cleaning too often wastes production time and chemicals. Cleaning too late lets deposits harden and lengthens the next cleaning. Tracking the heat transfer coefficient helps find the economic interval for each product. After every cleaning, compare the restored coefficient with the clean baseline. If performance no longer returns to its original level, a residual layer is building up that the current cleaning recipe does not remove, and the chemicals, temperature or contact time should be reviewed before the problem grows.
A Practical Fouling Prevention Checklist
- Analyze the feed thoroughly, including hardness, silica, sulfate, suspended solids, proteins and organics.
- Match evaporator type to fouling tendency, using forced circulation where scaling is severe.
- Design for adequate velocity, full wetting and moderate wall temperatures.
- Install suitable pretreatment ahead of the evaporator.
- Select materials that resist both corrosion and adhesion.
- Monitor heat transfer coefficient, steam pressure and pressure drop continuously.
- Run steadily within design concentration and temperature limits.
- Clean on a planned schedule using automated CIP where possible.
- Review fouling incidents and feed changes regularly with your equipment supplier.
Why Choose AKSH Engineering
AKSH Engineering Systems Pvt. Ltd. has been designing and manufacturing evaporation, drying and turnkey process plants in Ahmedabad, Gujarat, since 2013, with more than 100 installations. Our team of technocrats brings over 100 years of combined experience. Because we design and fabricate in-house, we can tailor evaporator type, flow velocity, materials, cleaning provisions and controls to the fouling behavior of your liquid. We also supply the cleaning and control systems that keep plants performing, as part of our wider automation and control range.
Conclusion
Evaporator fouling is predictable, measurable and largely preventable. Scaling, particulate, protein, reaction, biological and corrosion fouling each have distinct causes, and each responds to the right combination of evaporator design, feed pretreatment, steady operation and planned cleaning. Plants that monitor performance and act early keep their evaporators closer to design capacity, use less steam and spend less time shut down.
If fouling is limiting your existing evaporator, or you want to design it out of a new project, talk to the AKSH Engineering team. We will review your feed, your operating data and your cleaning practice and recommend practical improvements.
