Industrial Rotary Dryers & Heavy-Duty Drum Drying Plants

AKSH Engineering Systems Pvt. Ltd. is a leading manufacturer, supplier, and global exporter of high-efficiency Industrial Rotary Dryers based in Ahmedabad, Gujarat, India. Designed for continuous moisture extraction from high-volume bulk solids, sludges, and minerals, our rotary drum dryers deliver rugged durability, low thermal energy consumption, and high operational reliability in demanding production environments.

Whether processing abrasive minerals, agricultural biomass, chemical salts, or industrial waste, AKSH Engineering custom-designs rotary drying plants engineered for your exact feed moisture, bulk density, thermal sensitivity, and production capacity requirements.

What is an Industrial Rotary Dryer?

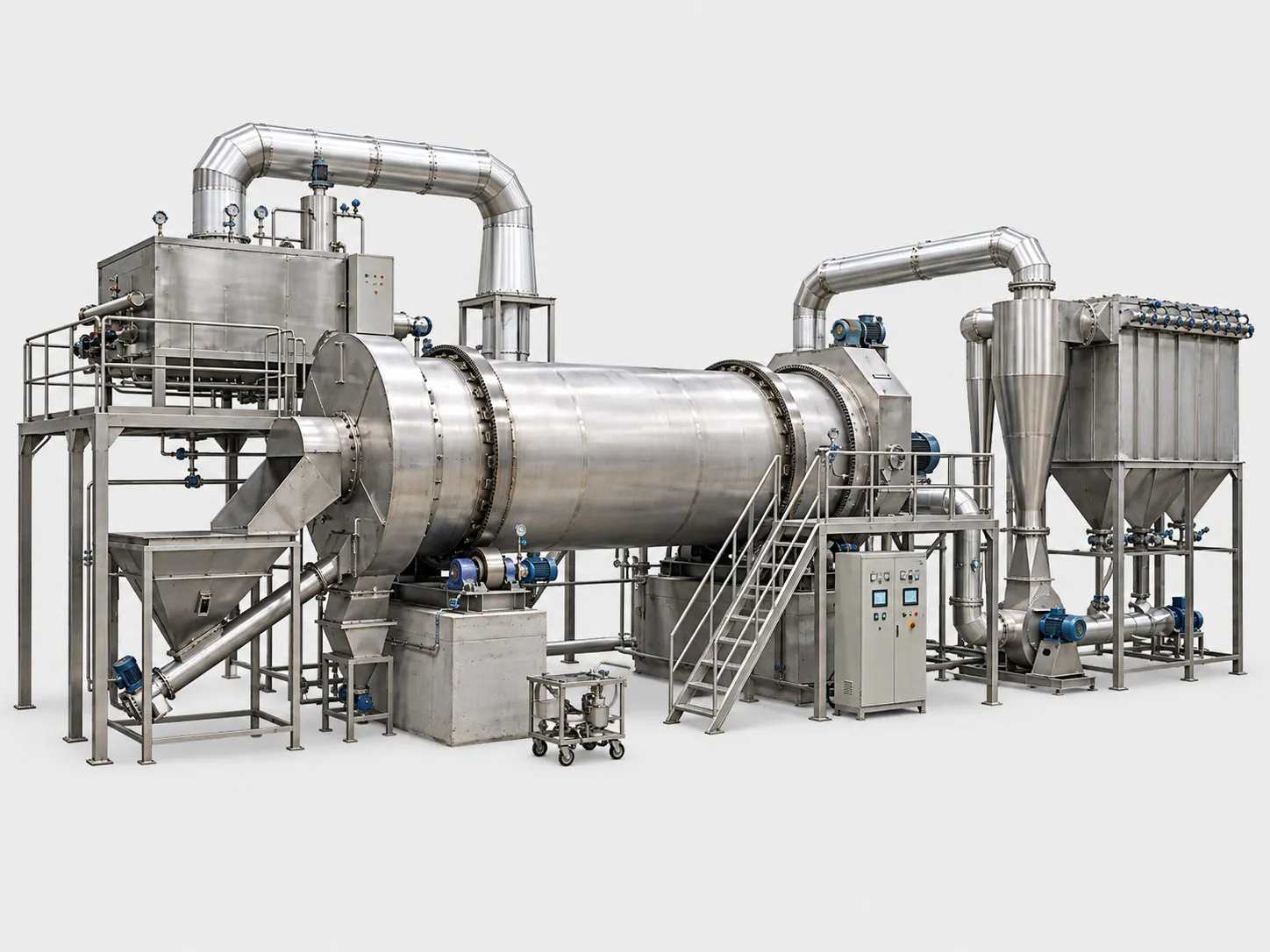

An Industrial Rotary Dryer consists of a large, rotating cylindrical drum slightly inclined toward the discharge end. As the drum rotates, internal lifters or flights elevate the wet material and cascade it downward through a continuous stream of hot air or gas.

This cascading action maximizes material contact with the drying medium, achieving rapid, uniform moisture evaporation across high throughput volumes.

Types of Rotary Drying Systems We Manufacture

We design and fabricate two primary rotary drying configurations tailored to distinct process requirements:

1. Direct-Fired Rotary Dryers

Direct rotary dryers bring the wet feed into direct contact with hot air or combustion gases. This configuration delivers the highest thermal heat-transfer rates for non-sensitive bulk materials.

• Best For: Minerals, ores, sand, fertilizers, coal, agricultural biomass, and heavy aggregates.

• Key Features: High thermal efficiency, rapid drying cycles, and large volumetric capacity.

2. Indirect-Fired Rotary Dryers

Indirect rotary dryers transfer heat through the shell wall or sealed internal tubes without direct contact between the material and combustion gases.

• Best For: Thermally sensitive materials, fine powders prone to dust formation, flammable products, or applications requiring controlled inert environments.

• Key Features: Zero product contamination from flue gases, reduced exhaust air volume, and dust explosion prevention.

Key Advantages of AKSH Rotary Drum Dryers

• High Processing Capacity: Capable of handling bulk feeds ranging from small batch pilot units up to 50+ tons per hour.

• Custom Internal Flight Design: Specially engineered lifter geometries prevent material buildup and ensure optimal showering patterns across the drum cross-section.

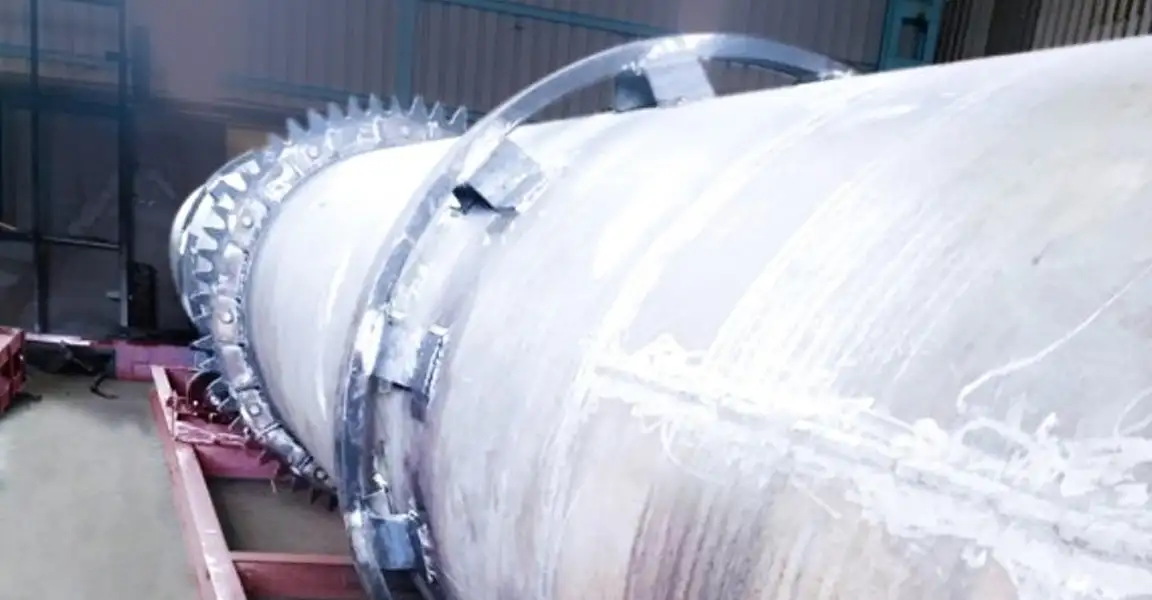

• Robust Mechanical Construction: Heavy-gauge steel shells, precision-machined riding rings (tyres), trunnion roller assemblies, and heavy-duty girth gears for long operational lifespans.

• Energy-Efficient Operation: Integrated thermal insulation, sealed feed/discharge housings, and variable speed drives (VFD) minimize heat loss and fuel consumption.

Technical Specifications & Capabilities

Applications Across Process Industries

• Mining & Minerals: Sand, limestone, gypsum, clay, iron ore, and metallic concentrates.

• Agrochemicals & Fertilizers: NPK fertilizers, urea, potash, and organic manure.

• Biomass & Waste Processing: Wood chips, sawdust, bagasse, municipal solid waste, and sludge.

• Chemicals & Pigments: Industrial salts, synthetic polymers, and crystalline solids.
